Product Summary

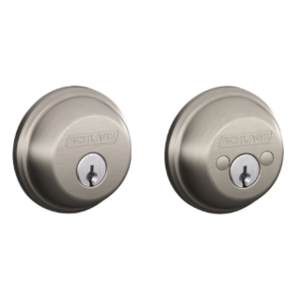

Schlage is a house hold name synonymous with security. For more than 80 years Schlage has been setting the standard for security products and door hardware in the United States. This Schlage B-Series B62 Double Cylinder Deadbolt fits the standard bore hole of 2-1/8" or 1-1/2" and has an adjustable backset. This set will fit virtually any application. If you have any questions at all or would prefer to order by phone please call (866)259-8901. We are here to Help!
Features
- Double cylinder deadbolt
- Unique Snap & Stay™ design
- ANSI Grade 1--professional grade security
- Biggest adjustable bolt available
- Pick and bump resistant
- Adjusts to fit all standard door preparations
- Quality finishes for lasting beauty
- Lifetime finish and mechanical guarantee
Specifications
- Applications: Residential single- and multi-family doors
- Certifications: Meets Grade 1 BHMA requirements
- U.L. Listed: Locks for up to three-hour fire doors available
- Keying: 5-pin tumbler C keyway standard, with two brass keys
- Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard
- Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset
Product Identifiers
00043156169252 , 1106078, 5239496, 95759, ACE-5239496, B362N V609, B62, B62N V505, B62N605, FJF8UG6KCHYL7OL7, NU-043156169252-A, Schlage_Re_B62605, acc71b97bf77
Technical Documents
Questions & Answers (5)
Question: Is this double-cylinder in matte black available with Greenwich trim?
Asked by on October 7, 2019
Answer: Phil, No. Double cylinders are not currently available with any of the Decorative Trim's.
Answer provided by on October 7, 2019
Question: Is it fit for 1.5 bore hole ?
Asked by on June 30, 2019
Answer: Yes, this deadbolt works with both 1-1/2" & 2-1/8" diameter bore holes.
Answer provided by on July 1, 2019
Question: Can you key this lock to a specific key code?
Asked by on June 27, 2017
Answer: Yes, you can enter your key code before adding this item to your cart. Your key code would be on your original key.
Answer provided by on June 27, 2017
Question: Can I get the Collins rosette for both sides of this deadbolt in 619?
Asked by on February 16, 2017
Answer: This set is currently not available as a double cylinder with Collins trim.
Answer provided by on February 20, 2017
Question: How long is the actual dead bolt? Thank you
Asked by on May 27, 2016
Answer: The B62 comes with a 1" throw
Answer provided by on June 2, 2016
