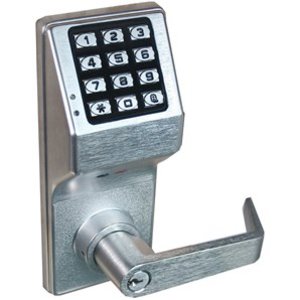

Alarm Lock DL2700WP26D T2 Weather Proof Trilogy Electronic Digital Lockset with Standard Cylinder Satin Chrome

Product Summary

• In an hour, add a dependable wireless access control keyless door lock, one door at a time—easily retrofit standard knobsets
• Support 100 to 2000 PIN codes (3-5 or 6 digits)
• Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes
• All keyless entry door locks are fingertip programmable at vandalproof all-metal keypad
• Long-life battery operation; low battery alert
• Key override
• Programmable relay functions
• Durable BHMA Grade 1 Lockset
• Weatherproof: sealed for use inside and out, with operational temperature range of +151 F to -31 F (+66 C to -35 C)

Features

• Backset: 2-3/4" standard, 2-3/8" optional
• Door Thickness: 1-5/8" to 1-7/8"
• Standard cylinder
• Keypad: All metal, 12 button programmable
• Latchbolt: UL Listed, fire rated, 3 hours, 1/2" throw.
• Strike: 1-1/8" x 2-3/4" T-strike & 1-1/4" x 4-7/8" ASA strike included. With screws for wood or metal jambs.
• Latch Front: 1-1/8" x 2-1/4" wrought brass or stainless steel.
• Power: 5 AA alkaline batteries (included).
• Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
• Compliances: Grade 1 heavy duty cylindrical lockset. UL Listed, FCC certified, ADA compliant levers.

Product Identifiers

00785026029838 , 0L-DL2700WPU, ALDL2700WP US26D, Alarm Lock DL2700WP, DL2700, DL2700 WP 26D, DL2700IC-Y, DL2700IC26DY, DL2700WP, DL2700WP 26D, DL2700WP-26D, SKUB000LDF9NE

Technical Documents

• Installation Document
• Programming Guide
• Specifications Document
