Overview
Product Summary

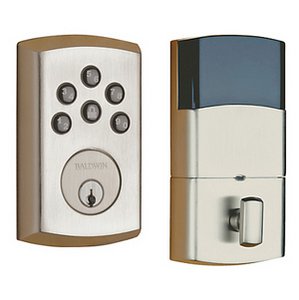

Baldwin’s 8285AC1 keyless deadbolt lock combines the convenience of keyless entry with exceptional quality. With your own personal code, you can enter your home with just a few pushes of a button. You also get more control over who has access to your home. Assign a temporary code for contractors or guests. Totally eliminate the need for keys. Baldwin Keyless deadbolts complement any Baldwin knob or lever and are ideal for an entry door, garage door, or wine cellar.
Features
- Back-lit keypad for increased visibility
- Solid brass trim
- One-touch locking with a motorized deadbolt
- 2 customizable access codes
- Easily installs in minutes with a screwdriver
- Fits standard 2-1/8" bore hole
- 4-8 digit codes
- Low Battery LED indicator (Batteries not Included)
Specifications
- Single Cylinder Deadbolt
- Door Prep: 2-1/8" Bore, 1" Edge Bore
- Backset: Adjustable 2-3/8" or 2-3/4"
- Door Thickness: 1-3/4 to 2"
- Keying: 5-Pin C-Keyway
Product Identifiers
00884011289568 , 0M18QAFU5E4HPWHN, 8285.260.AC1, 8285.AC1, BALDWIN_8285260AC1
Technical Documents
Instructional Videos
Questions & Answers (1)
Question: What are the dimensions of both pieces ie how big are they?
Asked by on March 10, 2022
Answer: Sharon, Please scroll down on this page and in the Technical Documents section click on the installation template for requested information.
Answer provided by on March 10, 2022
