About Schlage B60 / Schlage B60N Deadbolt

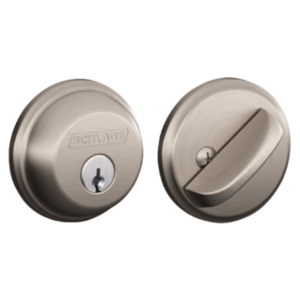

The Schlage Single Cylinder B60 Deadbolt features a strong, all-metal chassis to protect against invasions that involve kick-ins, lock picks, crowbars, saws, wrenches or hammers. Intended for use on exterior doors where substantial resistance is required, this deadbolt is designed to fit existing pre-drilled holes on most standard doors and includes an assortment of strike plates to match the recess of your door. Fits 1-3/8 inch to 1-3/4” inch wood or metal doors. Universal latch adjusts to fit 2-3/8" or 2-3/4 inch backset.
Features
- Unique Snap n’ Stay design
- Designed for exterior doors that need additional security
- All-metal chassis adds extra strength and durability
- Single cylinder function for easy installation
- Suitable for most door thicknesses
A Century Of Quality Craftsmanship
For almost a century, Schlage has provided the highest level of security to homes and businesses. Their B60 single cylinder deadbolt features an exclusive patented steel strike reinforcer and 3 Inch heavy gauge screws that penetrate the door jamb and into the wall stud. This full 1 Inch throw deadbolt protects the mechanism from kick-in attacks while the hardened steel roller prevents cutting and sawing attacks.
Designed For Security and Personal Style
The Schlage B60 single cylinder deadbolt offers style options for every occasion and is available in several finishes:
- satin nickel for warm silver tones (Part#: Schlage B60 619)
- satin chrome matte finish (Part#: Schlage B60 626)
- right brass for rich gold tones (Part#: Schlage B60 605)
- antique brass for warm undertones (Part#: Schlage B60 609)
- oil-rubbed bronze with deep brown tones (Part#: Schlage B60 613)
- antique pewter for soft, brushed tones (Part#: Schlage B60 620)
Product Identifiers
00043156169047 , 254630, 5239413, 580985, 60325, 70e361b38e53, B0032CML64, B360N 605 KA4, B60, B60N605, B60N605-20, Schlage B60 and Schlage B60N, Schlage_Re_B60605, TV77738, b60, feaddb74614f
Technical Documents
Instructional videos
Questions & Answers (15)
Question: I am ordering new door hardware for my home. I don't have an existing key code but I want all the deadbolts in my cart to use the same key and all the keyed knobs to use the same key. How do I specify this? Do I just selected "keyed alive" and leave the key code field empty for all units I order in the same order?
Asked by on May 11, 2026
Answer: Harrison, You would select the "Keyed Alike" option in the Keying drop down. All items in your cart with that selected will arrive to you operating with the same keys.
Answer provided by on May 11, 2026
Question: CAN I GET EACH 2 KNOBS KEYED ALIKE
Asked by on November 15, 2024
Answer: Yes, just selected the "Keyed Alike" option in the keying drop down menu.
Answer provided by on November 15, 2024
Question: Can I get this deadbolt with a 6 pin keyway?
Asked by on January 4, 2023
Answer: Unfortunately this is only a 5 pin cylinder. The B560 will come with the 6 pin cylinder when specified in order notes. https://www.doorhardwarecenter.com/schlage-b560p-single-cylinder-deadbolt/
Answer provided by on January 4, 2023
Question: I need to know the diameter of the lock. Trying to replace old deadbolt which is on french door against shutters. All we find are too large in diameter. Thanks.
Asked by on February 2, 2022
Answer: Marian, This deadbolt can work with bore holes of 1-1/2" or 2-1/8".
Answer provided by on February 2, 2022
Question: My original SCHLAGE key only has a key code of 3. How to I set the new one to my key?
Asked by on January 19, 2021
Answer: Don, All originals should have 5 digits physically stamped on the key. If yours only has the 3 on their it means it was re keyed at some point. You would have to bring that key to a locksmith and they could provide you with the actual key code.
Answer provided by on January 19, 2021
Question: what is the key code, do i fill that out
Asked by on January 1, 2021
Answer: Bill, They key code refers to the 5 digits stamped on the original keys. If you want us to match existing locks we would need that information. If your order does not require matching of existing locks you can keep that field blank and we will key your order alike to a random number if "Keyed Alike" is requested.
Answer provided by on January 4, 2021
Question: Also, is the keyway the same as for Baldwin such that they can be keyed alike? Thanks, John
Asked by on September 30, 2020
Answer: John, Schlage and Baldwin use the same cylinder type EXCEPT the Baldwin Prestige collection.
Answer provided by on September 30, 2020
Question: Are the exposed components solid brass or brass plated? Thank You, John
Asked by on September 30, 2020
Answer: John, Brass plated.
Answer provided by on September 30, 2020
Question: Can this deadbolt be keyed to another Schlage deadbolt that I bought a month ago?
Asked by on May 18, 2020
Answer: Bill, Yes, please call us at 8662598901.
Answer provided by on May 18, 2020
Question: is the "lock code" the 5 digit setting for the pins?
Asked by on March 4, 2020
Answer: Francis, That is correct.
Answer provided by on March 4, 2020
Question: Is this product the B60 or B60N? What is the difference between the two?
Asked by on July 18, 2019
Answer: Robert, The products are the same. Schlage has just modified the part number over the years.
Answer provided by on July 19, 2019
Question: will the b60 fit with a 1 7/8 inch hole instead of a 2 1/8 inch hole. or do you have to order it special.
Asked by on May 26, 2019
Answer: Jim, This deadbolt works as is for bore hole sizes 1-1/2 Inches up to 2-1/8 Inches.
Answer provided by on May 28, 2019
Question: Will the B60 deadbolt fit a 1.5 inch bore hole?
Asked by on September 1, 2017
Answer: Yes, this deadbolt would work on a 1.5" bore hole.
Answer provided by on September 7, 2017
Question: Will this deadbolt fit in a 1 1/2" bored hole?
Asked by on March 6, 2017
Answer: Yes, this deadbolt will work on a 1-1/2" diameter bore hole.
Answer provided by on March 6, 2017
Question: I need to select the 1.5 inch bore hole size but nowhere does it allow me to select that.
Asked by on August 22, 2016
Answer: The Schlage B60 comes with a mounting ring that you will just need to remove when installing on a 1-1/2" bore hole.
Answer provided by on August 22, 2016
