Rosette
Lever Type
Overview
Product Summary

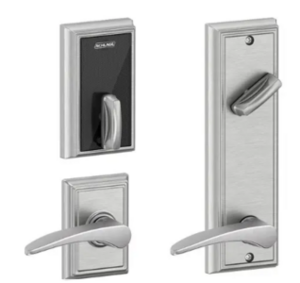

The Schlage Control® mobile enabled smart lock was designed specifically for multifamily residence doors. It allows properties to offer convenient security to residents and intelligent efficiency to property managers. And, through support for Bluetooth® mobile credentials, Schlage is opening the door to any number of future possibilities.
Schlage Control mobile enabled smart locks allow residents to gain access using a smart credential or their smartphone. And without traditional keys to deal with, properties will save time and money in managing resident access.
The open architecture capabilities of Schlage Control offer properties the freedom to use the physical access control (PACS) or Proptech provider of their choice to manage security and extend the possibilities of their locks beyond access control.
Available as a deadbolt or interconnected lock, properties can choose from two attractive styles and a broad selection of finishes and suited decorative lever designs.
Schlage Control is part of an extensive portfolio from Allegion™, which offers solutions for every opening within a multifamily property.
Features
- Designed specifically for multifamily properties
- Eliminates the cost and hassle of managing keys
- Two styles with a broad selection of finishes and decorative lever designs
- Modern credentials - use a smart credential or smartphone as key
- Interconnected design provides single motion egress
- Upgrades property visual appeal
- Increases intelligence and efficiency for property managers
- Lock programming via mobile application on phone or tablet (Bluetooth connection)
- Improves security and safety, reduces liability
- ADA compliant
- Supports networked (Gateway required), No-Tour and standalone applications
- Up to 500 users per lock*
- Audit trail reports up to 1,000 events**
- Easy installation no wires to run and fits standard door prep
- Up to 1 1/2-years (offline mode), up to 1 year (BLE credential enabled)
- Also available as a deadbolt
- *Maximum database storage capacity of lock. Can vary by access control software database capacity
- **Maximum audit storage capacity of lock. Can vary by access control software audit storage capacity
Specifications
- ADA Compliant: Yes
- Backset: Adjustable backset, fits 2-3/8 to 2-3/4 backsets
- Battery: 4-AA batteries (included), 9V Battery Backup (If loss of battery power occurs, a 9V battery can be used to jump start the lock and provide access with an assigned credential.)
- Commercial Standard Certification:ANSI/BHMA A156.12 Grade 2, UL 90 minute, Canada UL 20 minute wood door rated, FCC Part 15, FBC
- Door thickness range: 1-3/8" to 1-3/4" (thick door kit available up to 2")
- Latch: 1" x 2-1/4" square and round corner faceplate (round corner standard, square corner included in package), 1" edge bore required
- Material: All-metal chassis and escutcheons
- Bore: 2-1/8"
- Strike: 1-1/8 x 2-3/4, round corner, no box, latch strike
- Warranty: Lifetime limited mechanical and finish; 1-year limited electronics
Requires 5-1/2 Inch center to center bore holes
Product Identifiers
Technical Documents
